Cruet
In urban relamping operations, spheres are very common, with great light scattering, pollution and high energy consumption. Many suggest the use of LED lamps with E27 socket. This solution, however, makes the system substandard so it should be discarded out of hand.
In these cases, EuLux proposes replacing the entire light fixture with Cruets, technologically advanced products that guarantee a modernization of the system while obtaining a lighting and economic result of unquestionable value. With Cruets, luminous efficiency improves significantly (LED Effic.: 166lm/watt) and upward light dispersion is completely deleted as all the light emanating from the light fixtures is intelligently directed toward the roadway.
Technical Specifications
| Body: Made of aluminum with low copper content. |
| Power supply: 110-270Vac, efficiency 94%, PFC>0,95; IP66; Class I and II + T |
| Color temperature: 5000K (choice: 3000K, 4000K) |
| LED efficiency: LED 166lm/W |
| Reference standards: EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201 |
| Guidelines: 2011/65/CE, 2006/95/CE, 2004/108/CE |

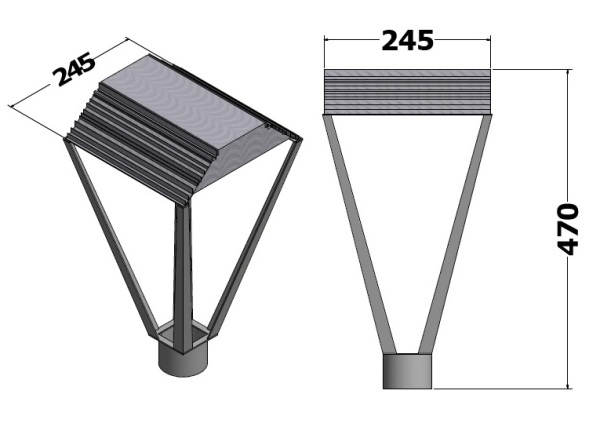

Dimensions

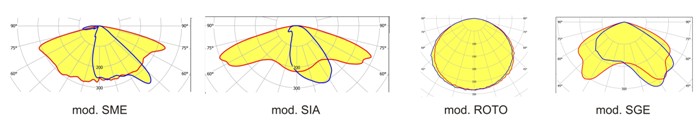

Photometrics available
CRUET 15
| Absorbed Power | 15W |
| Replace | SAP70, JM70 and MBF80 |
| Light intensity | 3190lm |
| Number of LED* | 12 |
| Weight** | 2,500 Kg |
CRUET 30
| Absorbed Power | 30W |
| Replace | SAP100, JM100 and MBF125 |
| Light intensity | 5806lm |
| Number of LED* | 12 |
| Weight** | 2,600 kg |
CRUET 45
| Absorbed Power | 45W |
| Replace | JM150 and MBF250 |
| Light intensity | 8750lm |
| Number of LED* | 24 |
| Weight** | 2,800 Kg |
CRUET 60
| Absorbed Power | 60W |
| Replace | SAP150 and JM250 |
| Light intensity | 11340lm |
| Number of LED* | 24 |
| Weight** | 2,800 Kg |
* This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
