Trixel
Trixel is a variant of the Axel characterized by high aesthetic value. Trixel photovoltaic streetlights from EuLux are completely “Made in Italy” products that combine unique and innovative design with the highest quality materials and energy-efficient performance. Depending on the brightness, the solution of the Trixel_40 model is proposed to customers. The model is designed and sized to achieve a range of about six (6) days in the absence of total light.
Technical Specifications
| Body | Made of die-cast aluminum with low copper content. |
| Structure | Made of galvanized iron and finished in epoxy powered resistant to UV rays and weathering. |
| Color temperature | 5000K (choice: 3000K, 4000K). |
| Batteries | Hermetic GEL batteries with characteristics of 10 to 15 years design life, long cyclic life, high discharge capacity. |
| Mounting | Pole-top mounting for poles with a maximum diameter of 89 mm. |
| LED efficiency | 185lm/W |
| Pole | Pole made of galvanized steel with a minimum outer diameter of 138 mm at the base and 89 mm at the highest point, 4mm (supplied upon request). |
| Bracket | Galvanized steel arm length L=100cm. Pole attachment for 93mm inner diameter. |
| Warranty | The 5-year warranty does not include the battery and control unit for which the warranty as per law applies. |
| Reference standards | EN 60598-1, EN 62471, EN 10819, UNI11248, EN13201 |
| Guidelines | 2011/65/CE, 2004/108/CE |

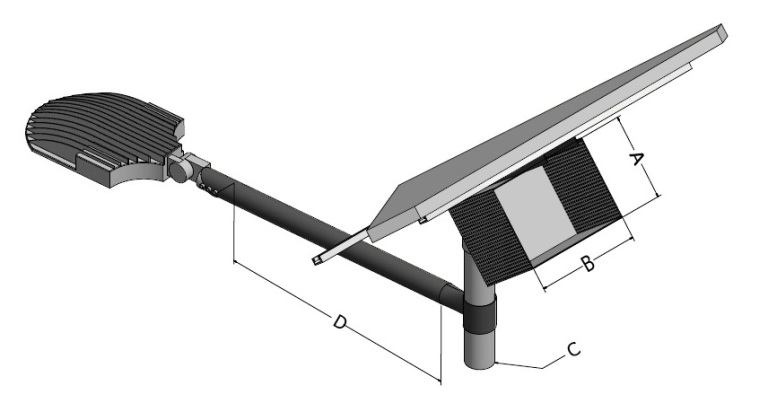

Structure and box dimensions
| Model | |
| TRIXEL20 | A= 246mm; B= 370mm; C= 102mmm (external diameter); D= 980mm; E= 263mm; |
| TRIXEL40 | A= 260mm; B= 365mm; C= 100mmm (external diameter); D= 790mm; E= 205mm; |

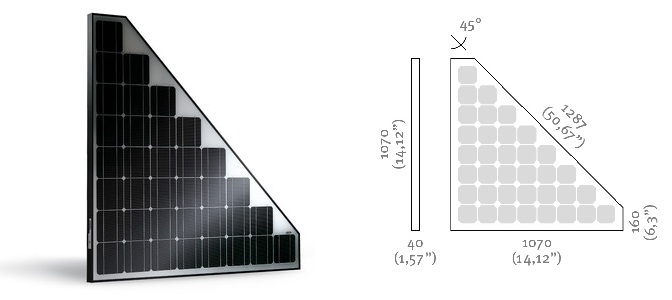

Photovoltaic module dimensions 100W
Technical Specifications Charge Regulator
| OPERATION | 12V | 24V |  |
| MAX INPUT CURRENT | 5/10A | 5/10A | |
| LOAD CURRENT | 5/10A | 5/10A | |
| LOAD DISCONNECT | 11,1V | 22,2V | |
| RICONNECTION LOAD | 12,6V | 25,2V | |
| TEMPERATURE | -35° +55° | -35° +55° | |
| TERMINALS (without cable) | 4 mmq | 4 mmq |
Photometrics available
TRIXEL 40
| Absorbed Power | 40W |
| Light intensity | 6640 lm |
| Number of LED | 24 |
| Weight | 69 Kg |
| Battery* | 2 GEL batteries 12V-50AH |
| Photovoltaic panel** | 2 100WP modules at 12V |
* AHs may vary by a few units. Please check when ordering.
** Panel model may be varied without notice depending on market availability.
