Led Pledin
The new versions of the Pledin are LED ceiling lights from EuLux with innovative electronics that further reduce consumption (up to 75% less than neon) for the same brightness.
There is nothing remotely comparable on the market (with only 20W of the Pledin020 you can replace a 4X18 neon).
Simple form but extremely functional. The right solution for those who need to illuminate and also meet aesthetic requirements.
Customers tend to use LED tubes and insert them into neon ceiling lights, replacing the classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following link, this technique causes the ceiling light to lose its certification and CE mark:
LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)
http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html
Technical Specifications
Body: Made of aluminum and polycarbonate;
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, CLASS I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K);
Mounting: Recessed in 60x60cm square (or ceiling mounted with the use of OpSP);
Photobiological safety: Conforms to the exempt risk group RG0, IEC 62471 standard;
Galss: Polycarbonate screen guaranteed 10 years against yellowing, IK08;
LED efficiency: 166 lm/W minimum guaranteed at 85°;
Reference standards
Conforms to exempt risk group RG=0; IEC 62471 standard; |
| |
Dimensions

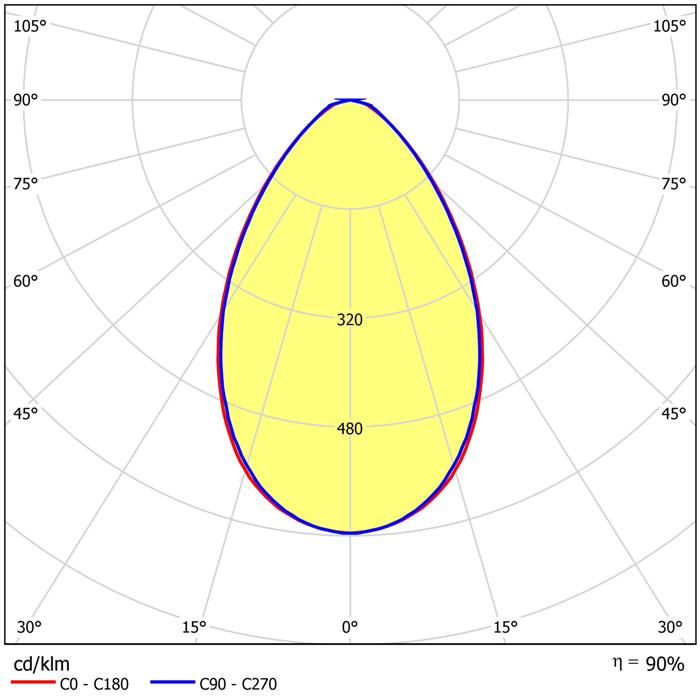

Available photometrics
Available ceiling structure colors
PLEDIN 20
| Power Absorbed | 20W |
| Number of Led* | 8 |
| Light Intensity | 3320 lm |
| Weight** | 2,4 Kg |
PLEDIN 21
| Power Absorbed | 30W |
| Number of Led* | 12 |
| Light Intensity | 4980 lm |
| Weight** | 2,7 Kg |
PLEDIN 22
| Power Absorbed | 40W |
| Number of Led* | 16 |
| Light Intensity | 6640 lm |
| Weight** | 2,9 Kg |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
Options
OpLUCO: Electronic control system for self-regulation of LED lighting;
OpCE1: Emergency kit for LED lamps;
OpSP: structure for mast mounting;
OpDALI: Electronic control system for LEd lighting with standard DALI protocol;
OpINLUX: Arrangement for PITECO flow controller and/or remote control;
