Led Pledout
With the Pledout starts the third generation of this family of pendant ceiling lights using LED sources.
A dry mechanical structure with ceiling, pendant or wall mounting options in single or multiple configurations.
The LED technology it encapsulates allows high luminous fluxes to be extracted with high efficiencies ( with a 40W Pledout045 it can replace a 2x58 neon).
Customers tend to use LED tubes and insert them into neon ceiling lights, replacing the classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following links, this technique causes the ceiling light to lose its certification and CE mark:
LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)
http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html
Technical Specifications
Body: Made of die-cast aluminum with low copper content.
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP54 Class I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K);
Mounting: hanging or wall mounting;
Photobiological security: Conforms to the exempt risk group RG0, IEC 62471 standard;
LED efficiency: 166 lm/W;
Reference standards
Conforms to the exempt risk group RG=0; norm IEC 62471; |
| |

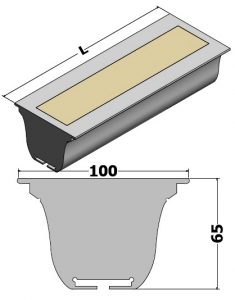

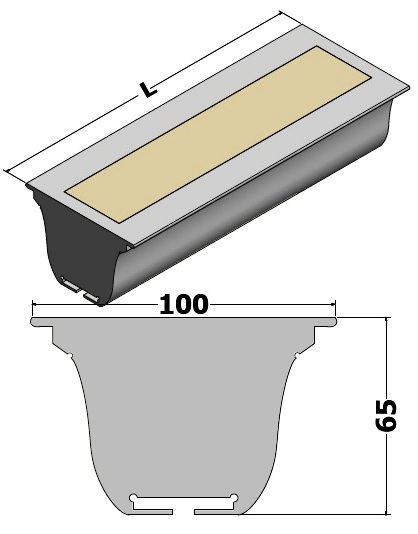

Dimensions

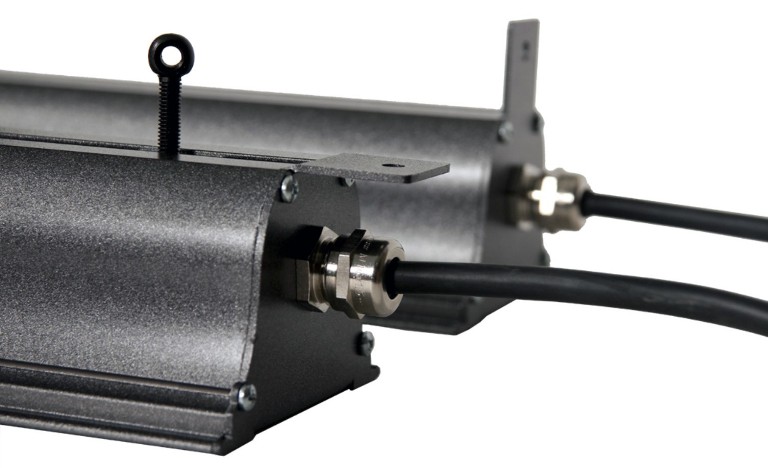

Type of attacks
Available structure colors

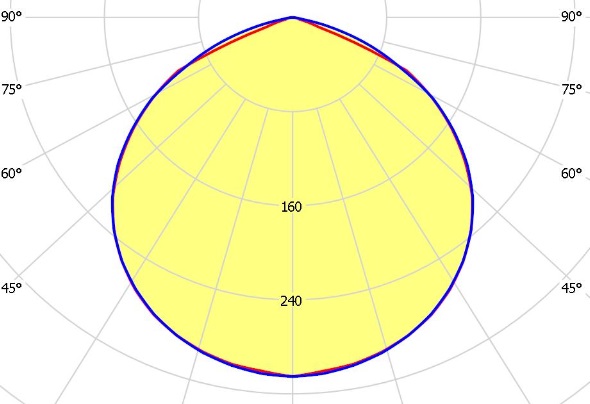

Available photometrics
PLEDOUT14
| Absorbed Power | 12W |
| Number of LED* | 4 |
| Light intensity | 1992 lm |
| Replace | 2×18 or 1×36 neon |
| Dimensions | 300x100x64 mm |
| Weight** | 0,8 Kg |
PLEDOUT28
| Absorbed Power | 25W |
| Number of LED* | 8 |
| Light intensity | 4150 lm |
| Replace | 2×36 neon |
| Dimensions | 600x100x64 mm |
| Weight** | 1,9 Kg |
PLEDOUT45
| Absorbed Power | 40W |
| Number of LED* | 12 |
| Light intensity | 6640 lm |
| Replace | 2×58 neon |
| Dimensions | 1200x100x64 mm |
| Weight** | 3,0 Kg |
PLEDOUT56
| Absorbed Power | 50W |
| Number of LED* | 16 |
| Light intensity | 8300 lm |
| Replace | 2×58 neon |
| Dimensions | 1500x100x64 mm |
| Weight** | 3,5 Kg |
* This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
