Led Pled_IP
Pled_Ips are IP65 watertight LED ceiling lights. Pled_Ip are ideal for lighting parking lots, warehouses, outdoor areas, commercial lights, etc….
The Polycarbonate structure, which is heat-resistant and highly impact-resistant, allows use even in particularly harsh environments.
Customers tend to use LED tubes and insert them into neon ceiling lights, replacing the classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following links, this technique causes the ceiling light to lose its certification and CE mark:
LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)
http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html
Technical Specifications
Body: Made of die-cast aluminum with low copper content.
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP54 Class I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K);
Mounting: hanging or wall mounting;
Photobiological security: Conforms to the exempt risk group RG0, IEC 62471 standard;
LED efficiency: 175 lm/W;
Reference standards
Conforme al gruppo di rischio esente RG=0;norma IEC 62471; |
| |

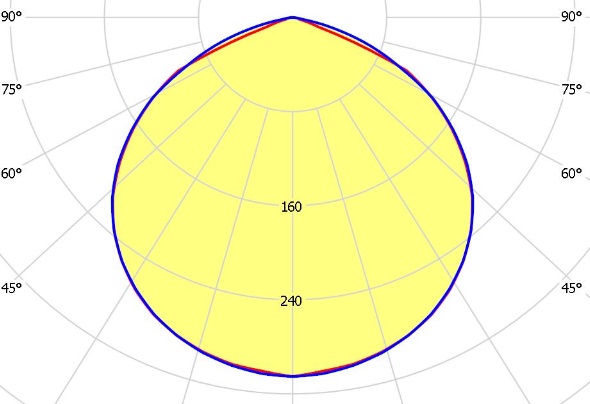

Available photometrics
PLED_IP15
| Absorbed Power | 15W |
| Number of LED* | 48 |
| Light intensity | 2625 lm |
| Dimensions | 662x66x90 mm |
| Weight** | 0,7 Kg |
PLED_IP30
| Absorbed Power | 30W |
| Number of LED* | 96 |
| Light intensity | 5250 lm |
| Dimensions | 1260x66x90 mm |
| Weight** | 1,5 Kg |
PLED_IP60
| Absorbed Power | 55W |
| Number of LED* | 192 |
| Light intensity | 9625 lm |
| Dimensions | 1565x66x90 mm |
| Weight** | 1,9 Kg |
* This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
