Led Synalar
Synalar are LED ceiling lights born from an evolution of the Pled Ran. The Synalar are designed to expand EuLux’s range of reflection ceiling lights to give more choice to its customers.
Synalars consist of light blocks of different numbers and sizes (square and rectangular) that allow for both recessed (60x60cm,etc…) and pendant/plafone use. In addition to the aesthetic appearance, the wave movements of the profile allow excellent light diffusion by reflecting it perfectly.
Customers tend to use LED tubes and insert them into neon ceiling lights, replacing the classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following links, this technique causes the ceiling light to lose its certification and CE mark:
LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)
http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html
Technical Specifications
Body: Made of aluminum with low copper content;
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, CLASS I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K);
Photobiological safety: Conforms to the exempt risk group RG0, IEC 62471 standard;
LED efficiency: 166 lm/W minimum guaranteed at 85°;
Reference standards
Conforms to exempt risk group RG=0; IEC 62471 standard; |
| |
Available ceiling structure colors

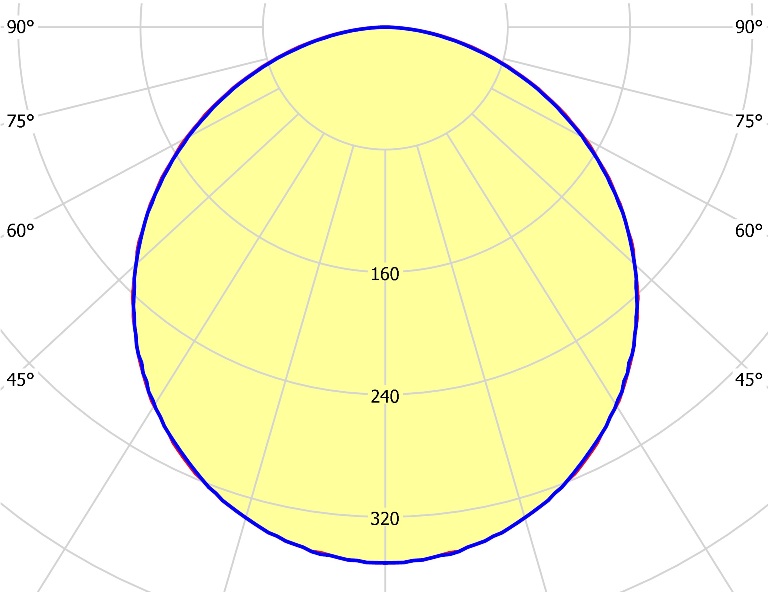

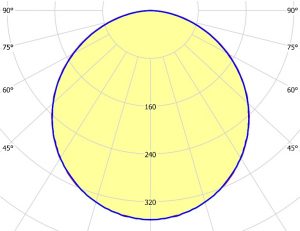

Available photometrics

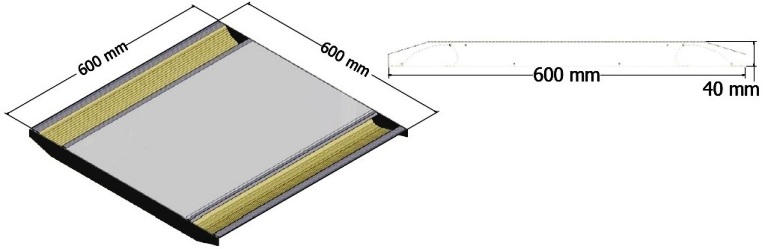

Synalar 30
| Power Absorbed | 30W |  |
| Replace | 4×18 neon | |
| Light Intensity | 5250lm | |
| Number of Led* | 96 | |
| Weight** | 2,20 kg | |
| Dimensions | 600x600x65 mm; |

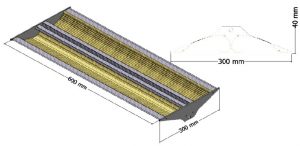

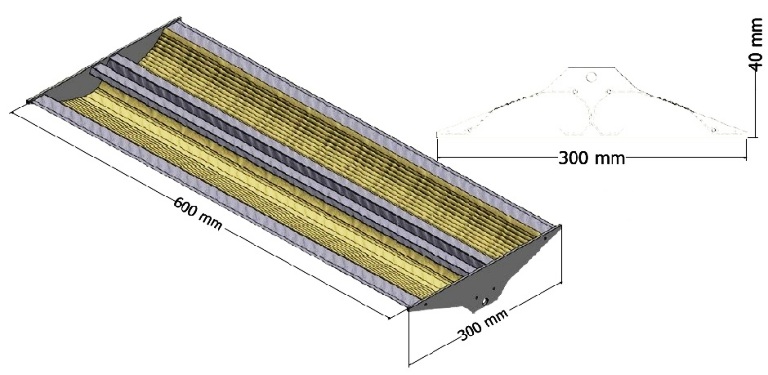

Synalar 30_2
| Power Absorbed | 30W |  |
| Replace | 2×36 neon | |
| Light Intensity | 5250lm | |
| Number of Led* | 96 | |
| Weight** | 0,90 kg | |
| Dimensions | 300x600x65 mm; |

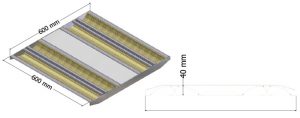

Synalar 60
| Power Absorbed | 60W |  |
| Replace | 2×36 neon | |
| Light Intensity | 10500lm | |
| Number of Led* | 192 | |
| Weight** | 3,80 kg | |
| Dimensions | 600x600x65 mm |

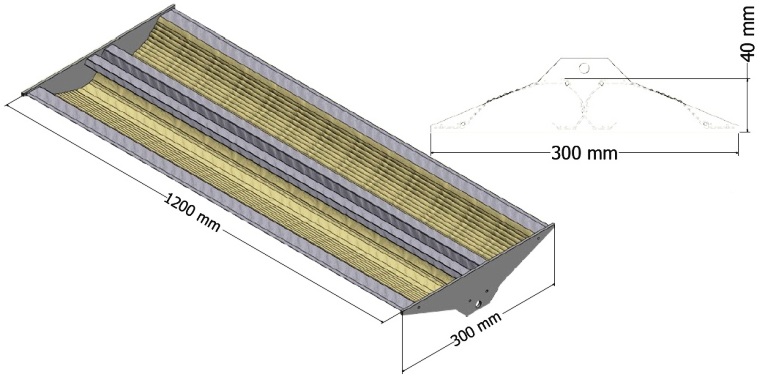

Synalar 60_2
| Power Absorbed | 60W |  |
| Replace | 2×58 neon | |
| Light Intensity | 10500lm | |
| Number of Led* | 192 | |
| Weight** | 2,70 kg | |
| Dimensions | 300x1200x65 mm; |
Synalar 90
| Power Absorbed | 90W |  |
| Replace | 2×58 neon | |
| Light Intensity | 15750lm | |
| Number of Led* | 288 | |
| Weight** | 2,60 kg | |
| Dimensions | 300x1650x65 mm; |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
