Cirene
EuLux Cirene series industrial caps take advantage of LED technology to provide greater energy efficiency for the same power consumption. Four(4) types are proposed to better suit the customer’s needs.
The Cirene LED spotlight is a versatile fixture designed to illuminate, with maximum effectiveness, environments used for the performance of social and economic activities such as commercial, craft, industrial, sports, exhibition and warehouse facilities.
Good lighting aids concentration, reduces eye fatigue and increases productivity.
With Cyrene greater brightness and brilliance, lower consumption, and thanks to the long life reduced maintenance.
Technical Specifications
Body: Made of die-cast aluminum with low copper content.
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP54 (standard) or IP66, CLASS I and II +T;
Color temperature : 5000K (choice: 3000K, 4000K);
Mounting: The projector has an elegant and effective eyebolt hook mounting system;
Optic: 60°, 96° or 120°;
Glass: Polycarbonate lens guaranteed 10 years against yellowing;
LED efficiency: 166 lm/W minimum guaranteed at 85°;
Reference standards
|
| |

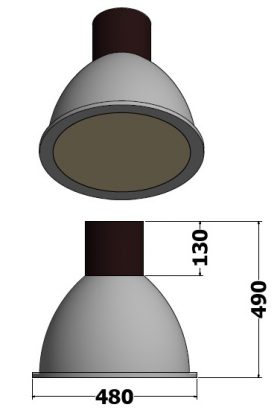

Dimensions

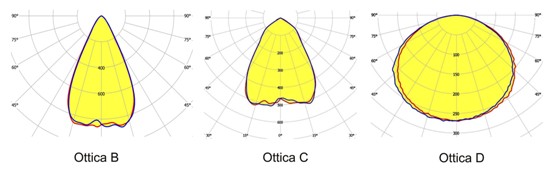

Photometrics available
CIRENE 60
It generates a maximum brightness of 308 lux when placed at a height of 6 meters and with density per 25 square meters.
| Absorbed Power | 60W |
| Number of LED* | 24 |
| Replace | SAP150 and JM250 |
| Light intensity | 9960 lm |
| Weight** | 7,5 Kg |
CIRENE 90
It generates a maximum brightness of 335 lux when placed 8 meters high and with density per 25 square meters.
| Absorbed Power | 90W |
| Number of LED* | 36 |
| Replace | SAP250 |
| Light intensity | 14940 lm |
| Weight** | 7,5 Kg |
CIRENE 120
It generates a maximum brightness of 370 lux when placed at a height of 8 meters and with density per 36 square meters.
| Absorbed Power | 120W |
| Number of LED* | 48 |
| Replace | JM400 |
| Light intensity | 19920 lm |
| Weight* | 8,2 Kg |
* This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
